A quadruped mechanism documented through Fusion 360 assembly views and dimensioned component drawings.以 Fusion 360 組裝視圖與零件尺寸圖記錄四足機構的三維結構設計。

Fusion 3603D CADMechanical drawings機械工程圖

01 / DESIGN WORK設計工作

Design scope設計範圍

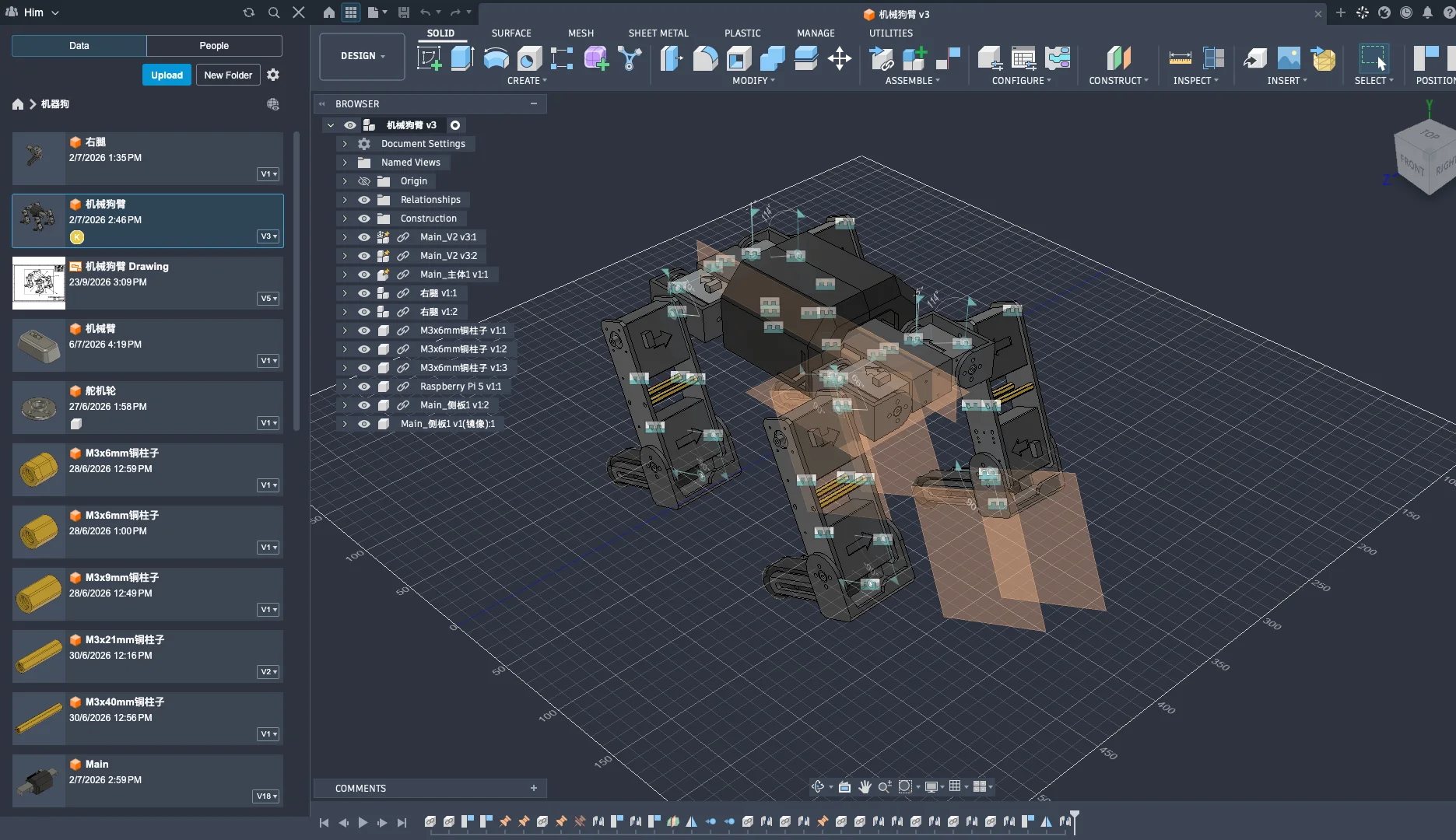

Assembly組裝3D component relationships and the overall quadruped structure in Fusion 360.以 Fusion 360 表達四足機構的整體結構及零件組裝關係。

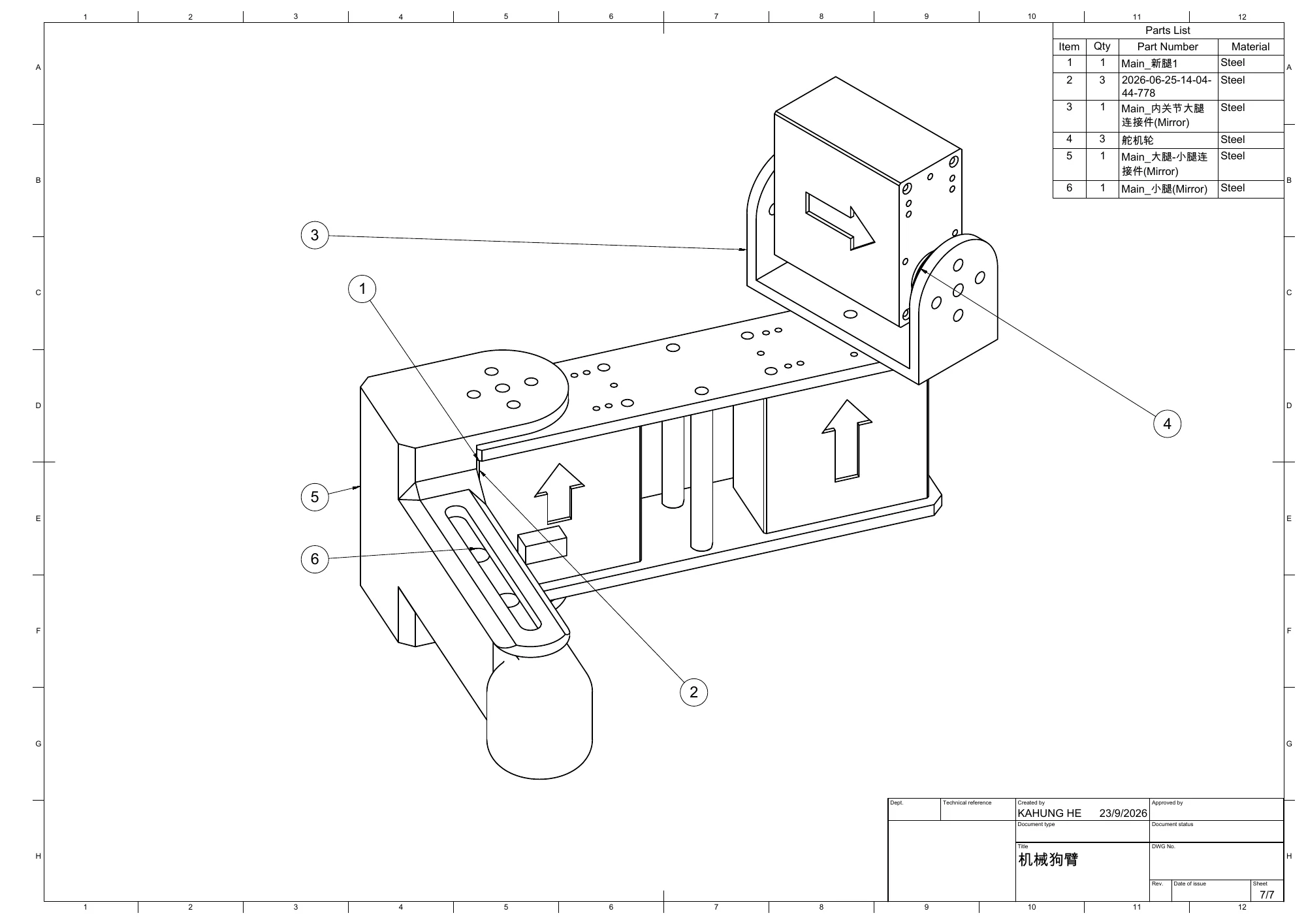

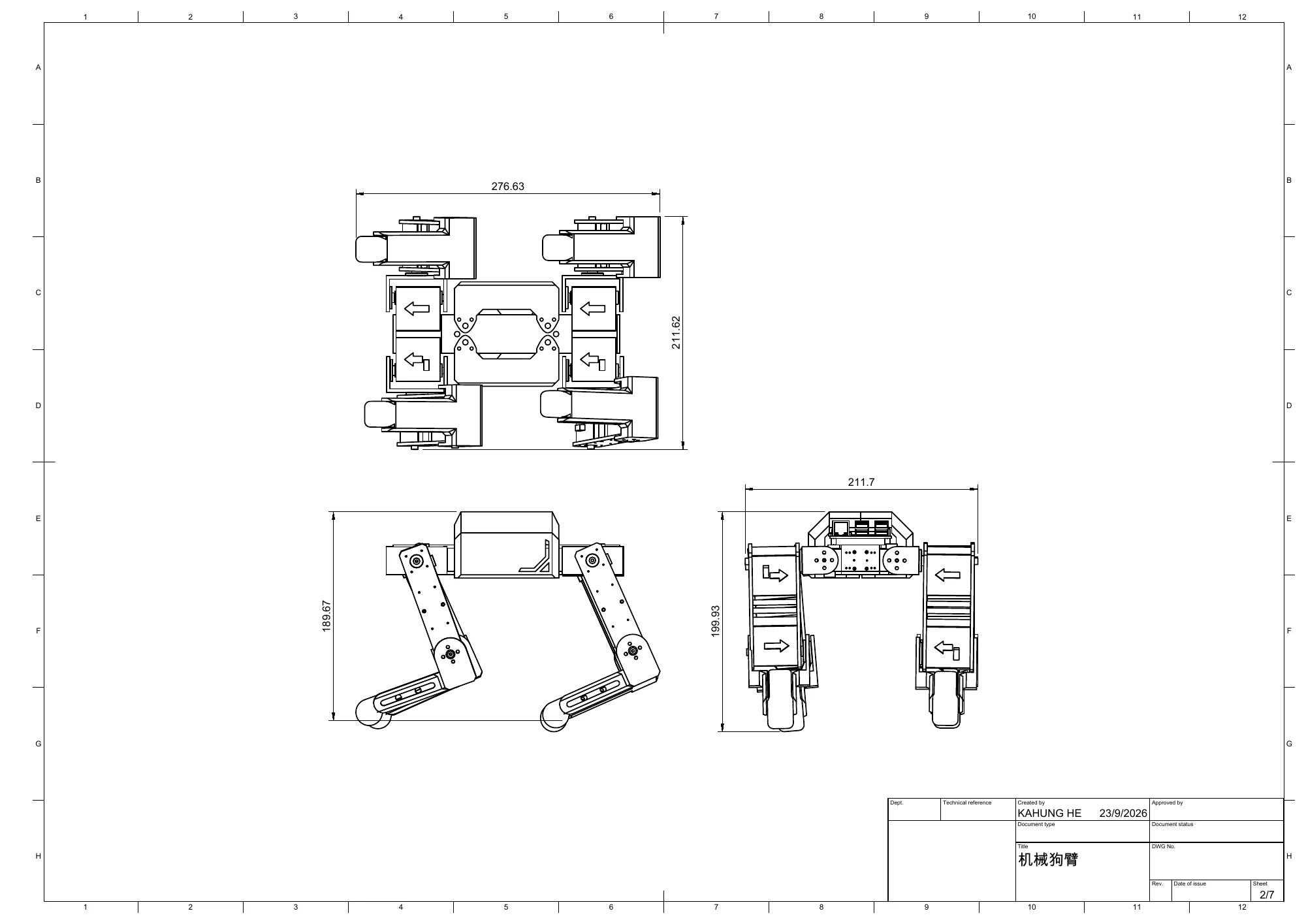

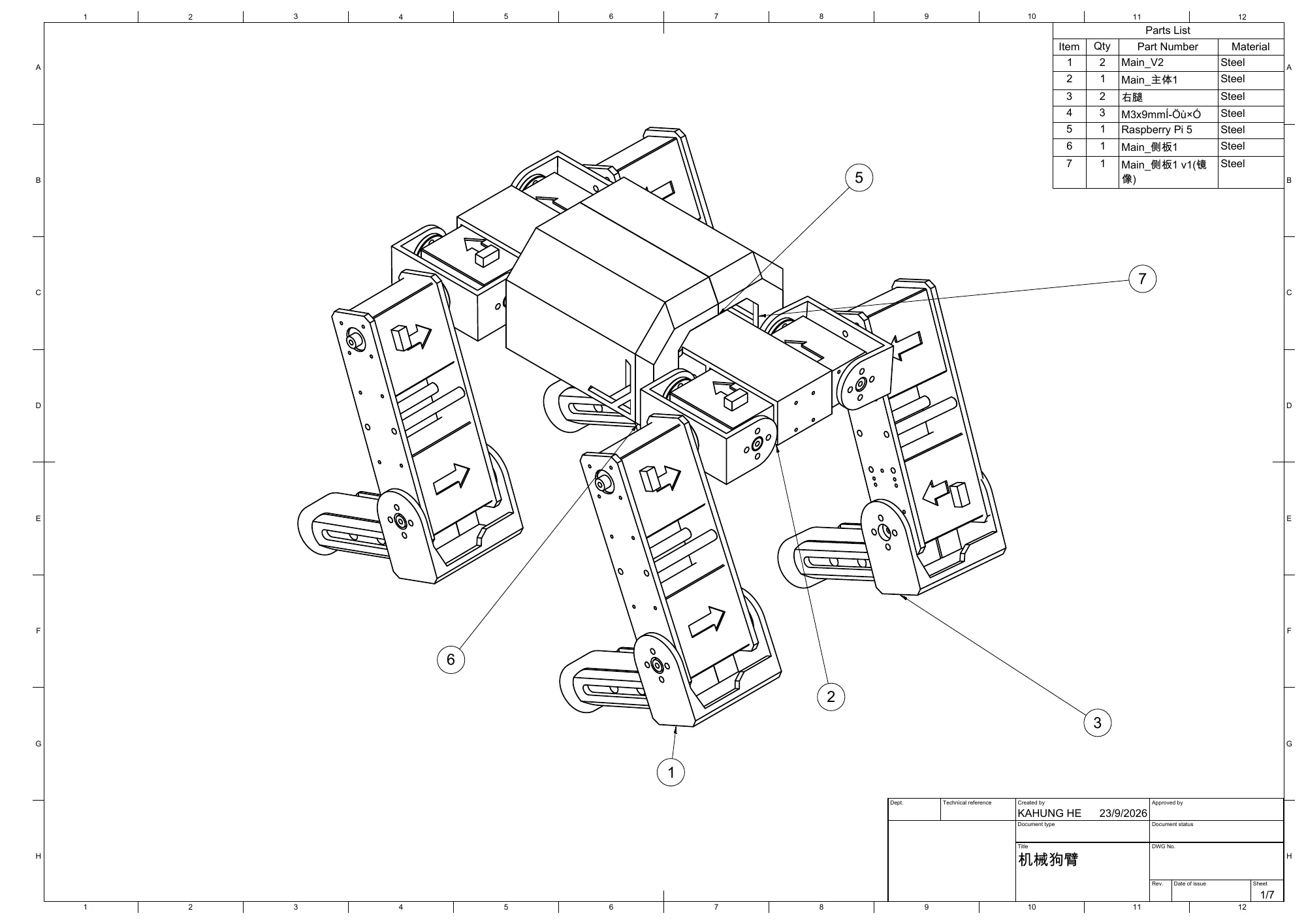

Documentation工程圖Isometric, orthographic, and exploded views, with component identifiers.包含軸測圖、正投影及爆炸圖，標示零件編號。

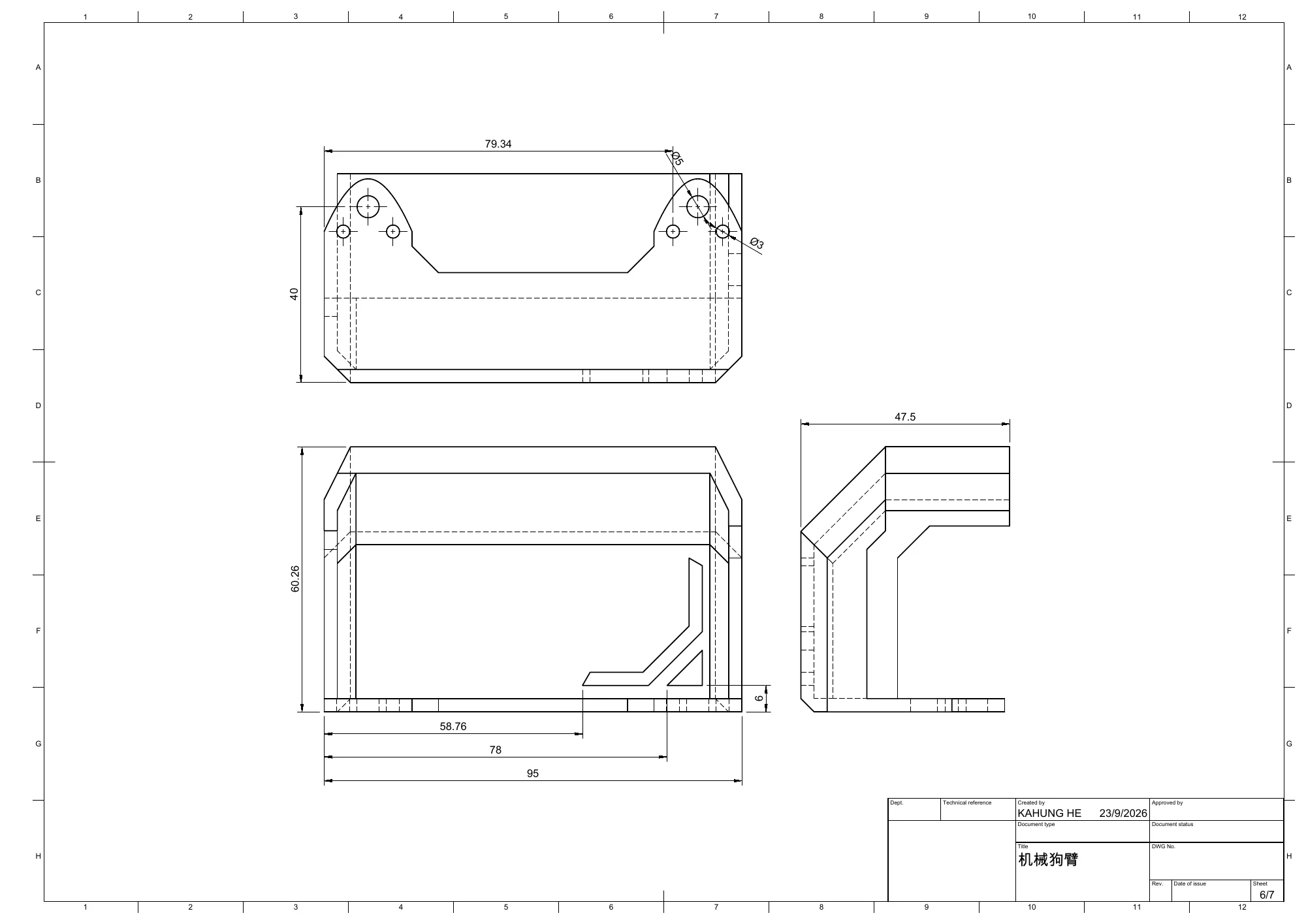

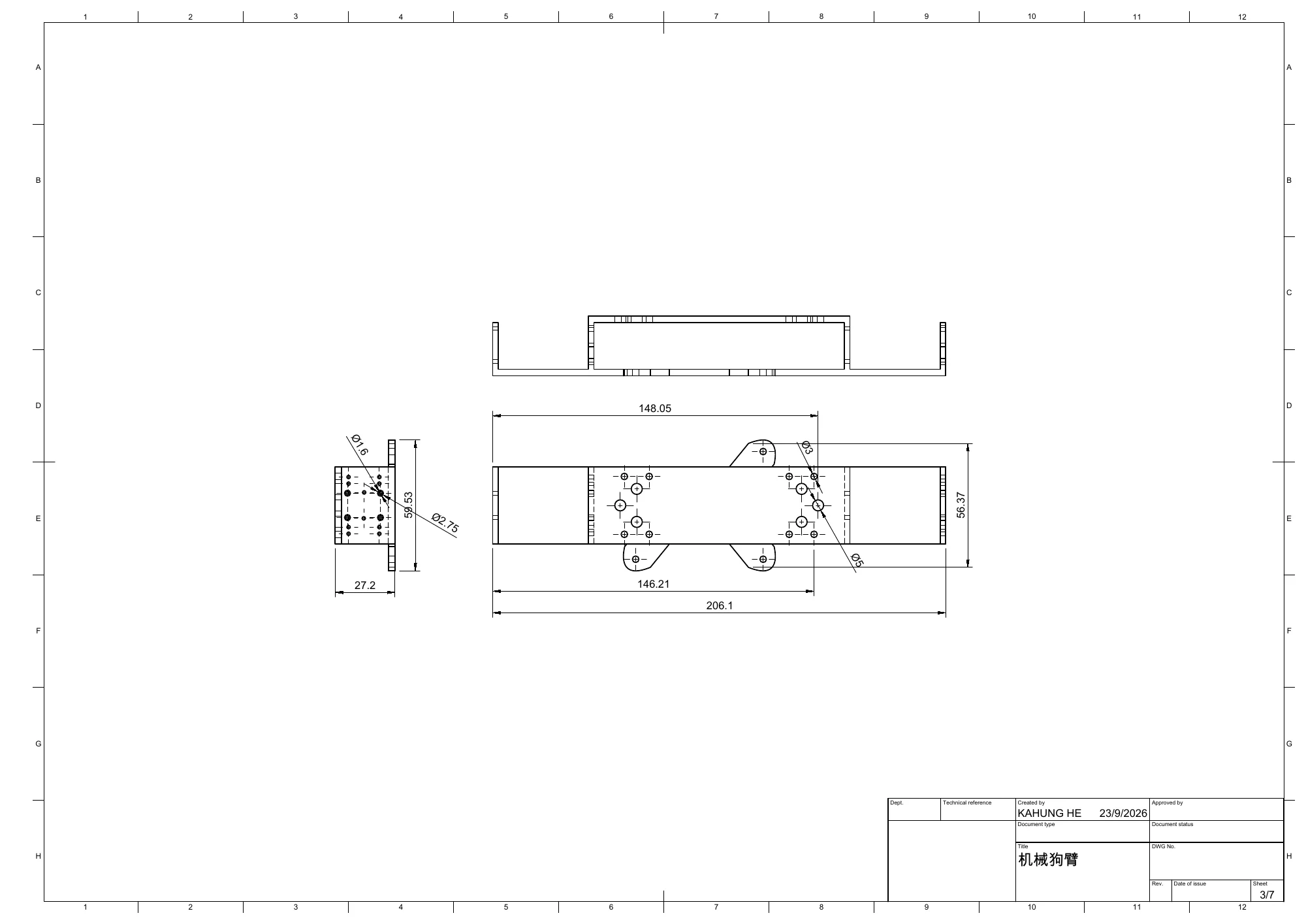

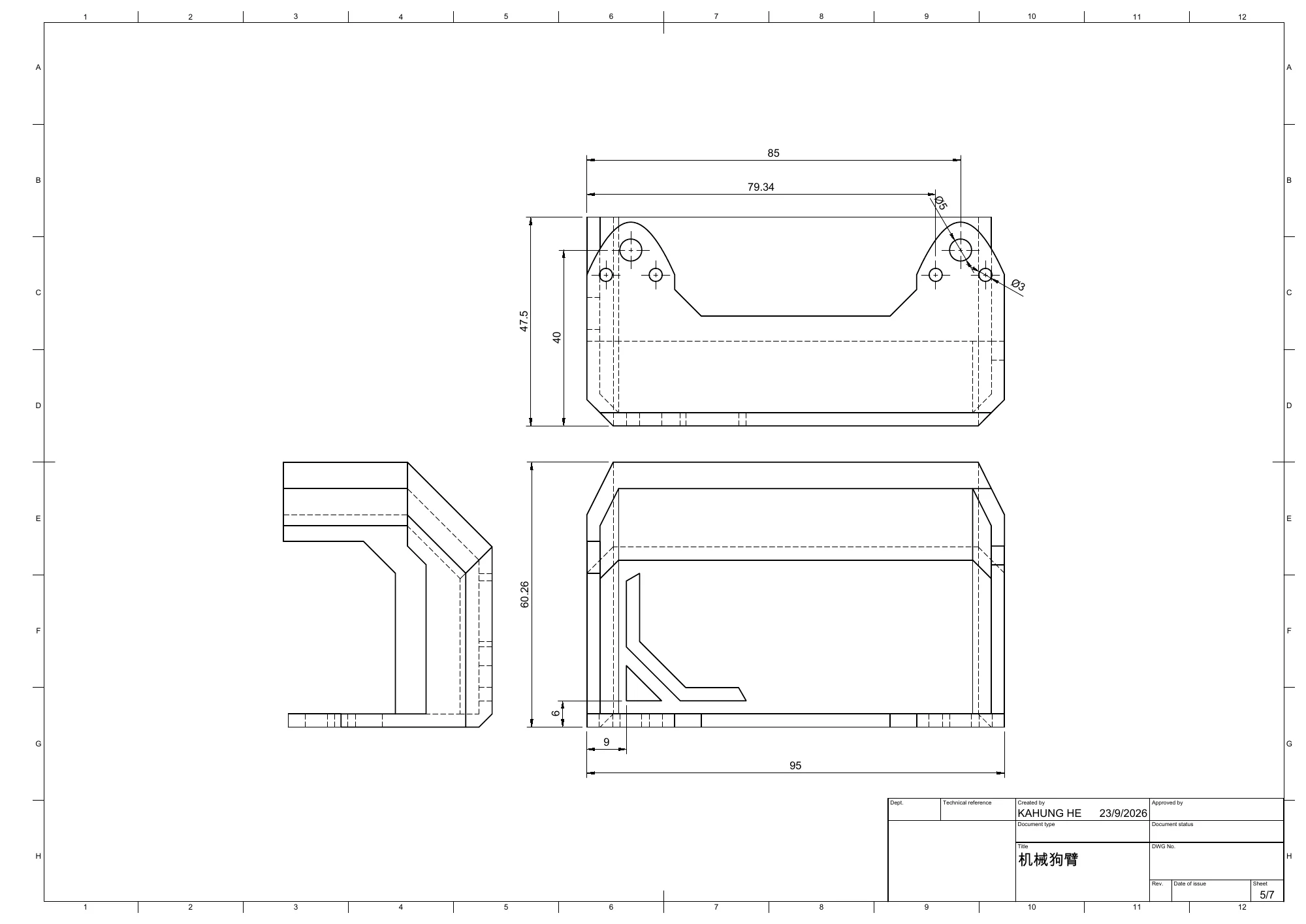

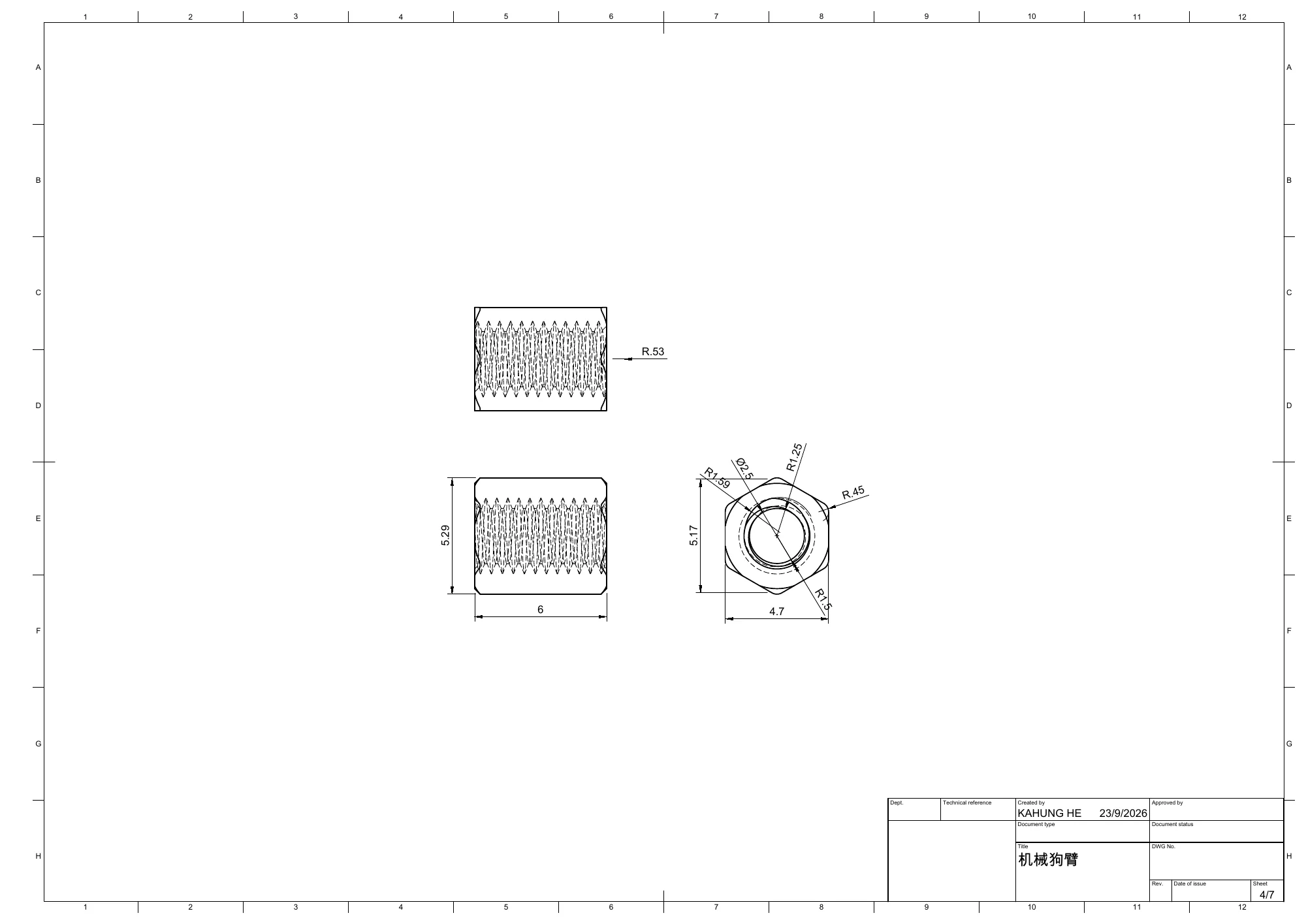

Dimensions尺寸Individual drawings specify component geometry and mounting features.個別零件圖標註結構尺寸與安裝特徵。

Documentation represents CAD work, not a claim of fabrication or physical testing.圖紙展示 CAD 設計，不代表已完成實物製作或測試。

02 / DRAWINGS圖紙

Workspace view and seven drawing sheets. Open an image for its full-size version.組裝工作區視圖及七頁工程圖，可點擊查看原尺寸圖片。
